Linear Flexible Stone Cladding
Clean Lines, Flexible Forms, Natural Texture

Designed for contemporary architectural surfaces, Our linear flexible stone combines refined linear textures with a natural stone appearance. Its lightweight, flexible format creates clean visual lines and layered surface depth while adapting to walls, columns, curved areas, and other design features.

From texture selection and sample review to production and delivery, we support projects with practical material guidance and responsive sourcing. Whether for a single feature wall or a larger architectural scheme, our team helps coordinate specifications, finishes, quantities, and project requirements.

Linear Texture Collection & Products

Six distinctive linear textures, from flowing mineral veins and layered lines to structured woven patterns. Each design brings its own rhythm, depth, and architectural character to flexible stone cladding.

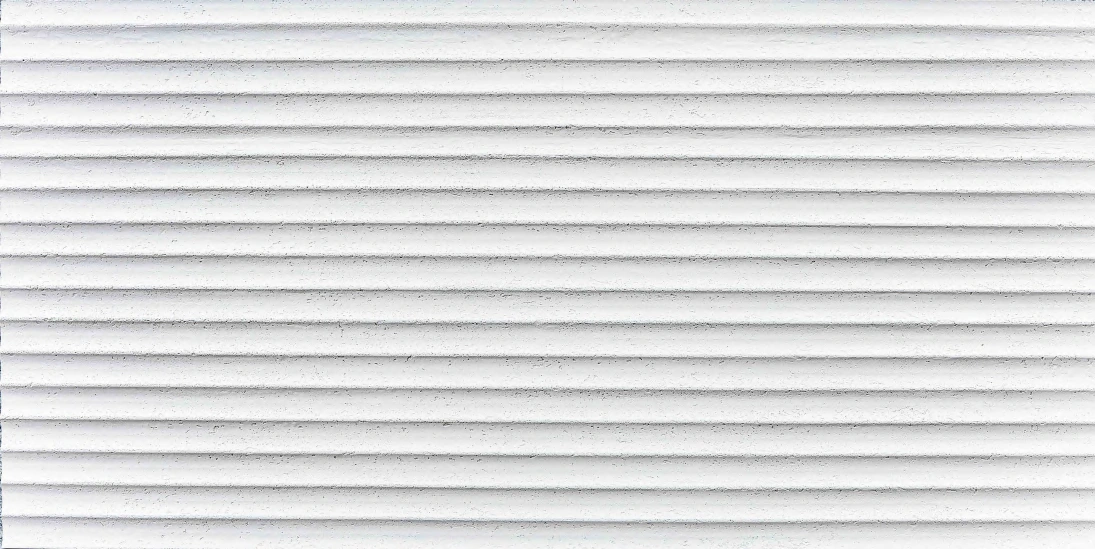

Pearl White Large Ripple stone texture with clean horizontal fluted relief

Large Ripple Texture

Continuous vertical ripples add depth and rhythm to the surface.

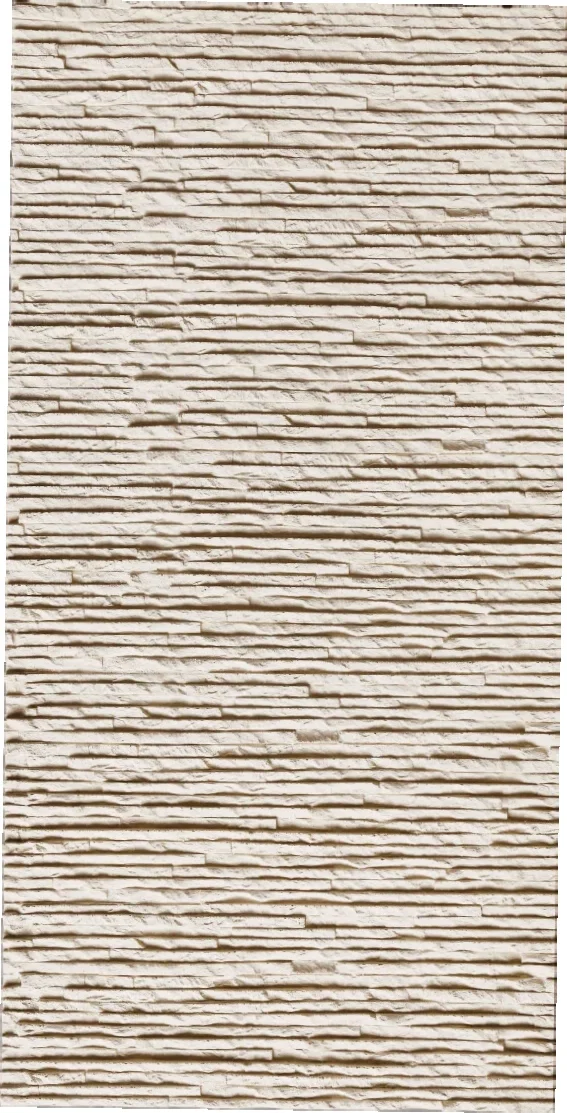

Flowing Stone Texture

Layered, flowing relief creates a natural sense of depth and movement.

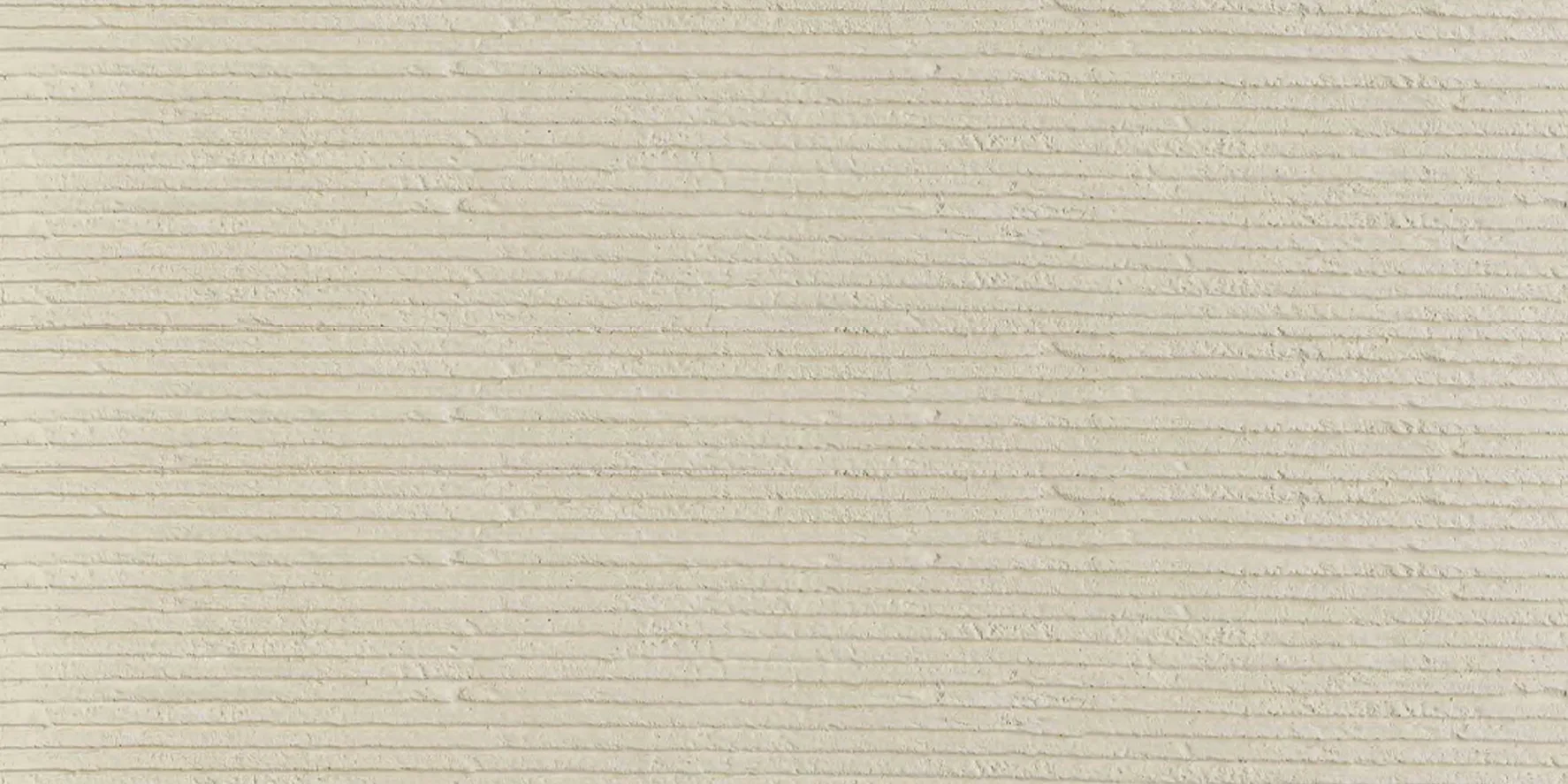

Qianmo Stone Texture

Slim linear grooves create a clean rhythm with understated dimensional texture.

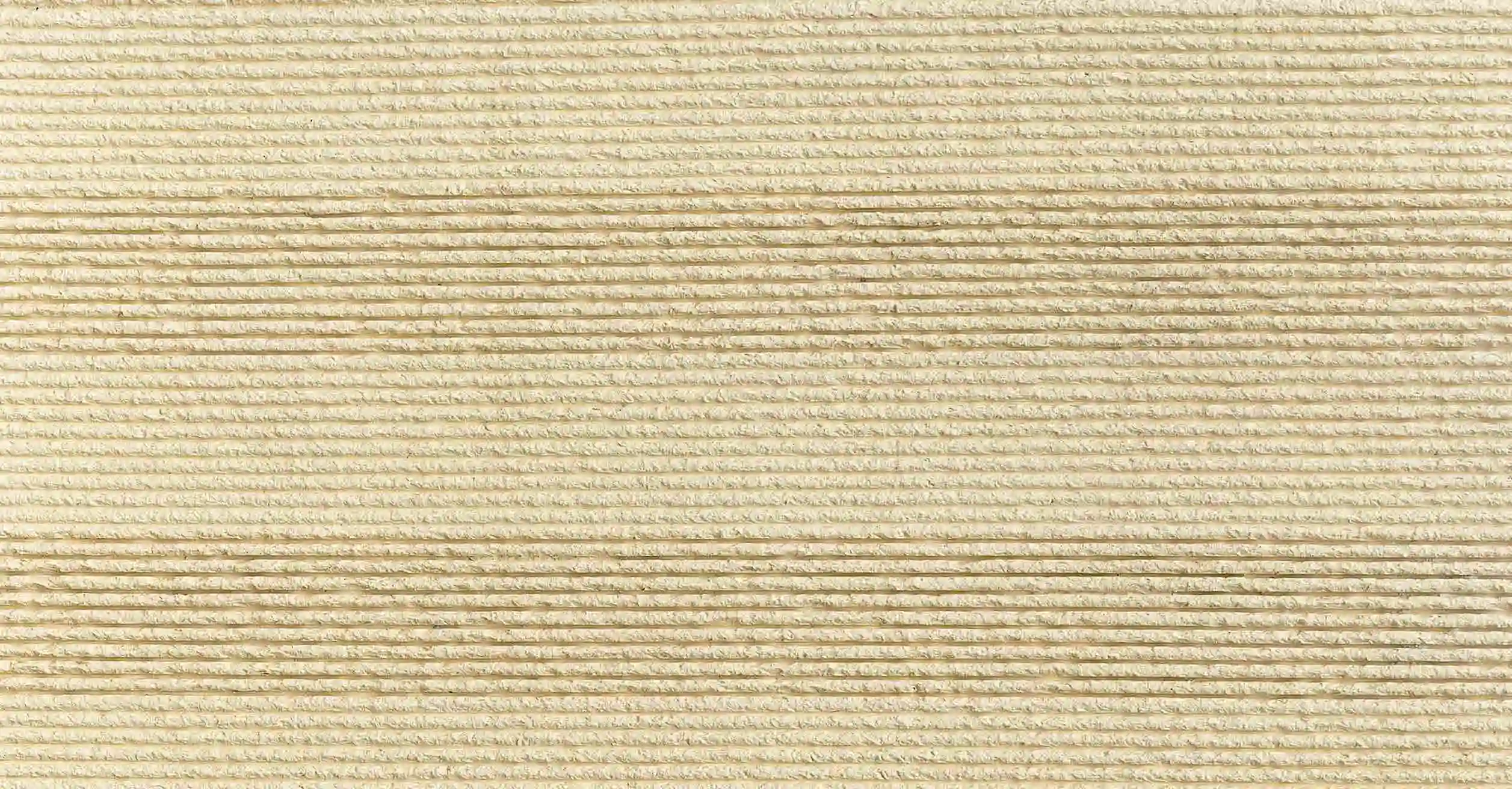

Oman Line Stone Texture

Vertical lines blend with natural stone variation for a bold, dimensional surface.

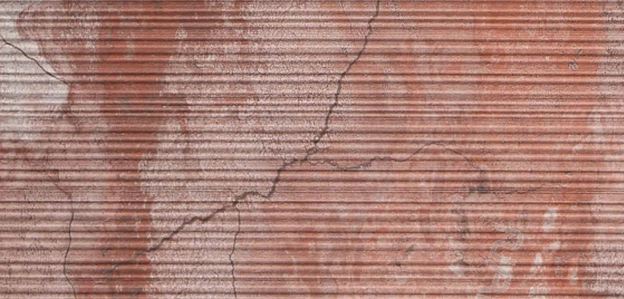

Canyon Rose Linear Stone texture with warm rose red tones, fine horizontal lines and natural mineral patterns

New Line Stone Texture

Fine parallel lines create a delicate texture with natural tonal variation.

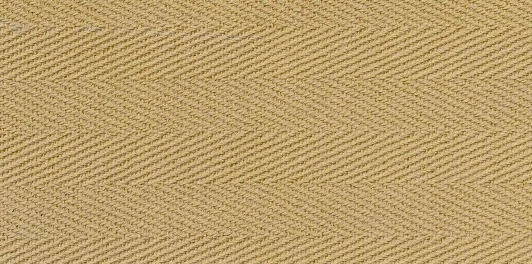

Woven Stone Texture

Fine interwoven lines create a refined texture inspired by natural woven fibers.

Features & Selection Considerations

Advantages

Distinctive Linear Surface Design
Vertical, flowing, layered and woven textures create different visual rhythms, giving flexible stone cladding a more structured architectural character.
Natural Stone-Inspired Appearance
Mineral variation, tonal depth and tactile surface details add visual richness, helping linear finishes achieve a more natural stone expression rather than a flat printed effect.
Lightweight & Flexible Format
With a lightweight profile and flexible construction, the panels can adapt to curved walls, columns and selected irregular surfaces while reducing the handling and structural demands of heavier stone finishes.
Durable for Interior & Exterior Use
Water and moisture resistance, UV resistance and weather-resistant performance support a wide range of applications for flexible stone cladding, from interior walls and feature surfaces to exterior façades.
Fire-Safe & Low-Emission Material Choice
Class A fire performance and low-emission, formaldehyde-free material characteristics support use in residential, commercial and hospitality environments where safety and indoor environmental considerations matter.
Design Flexibility Across Different Styles
Fine lines can create a calm contemporary look, while deeper reliefs and layered patterns provide a stronger architectural statement. Multiple colors and finishes allow the same linear concept to suit different design schemes.
Efficient Handling & Installation
The thin, lightweight format can simplify transportation, cutting and on-site handling compared with conventional stone materials, helping improve installation efficiency and overall project practicality.

Important

Texture Direction Affects the Final Appearance
Linear patterns create a strong directional effect. Confirm the intended orientation and panel arrangement before installation, especially on large feature walls or continuous façades.
Relief Depth Varies by Product
Some textures are fine and subtle, while others have deeper grooves or stronger surface relief. Review physical samples to understand the actual shadow, tactile effect and visual scale before selection.
Color and Texture May Vary Between Products and Batches
Natural-looking tonal variation is part of the design character. For larger projects, confirm the selected color, texture and production batch before manufacturing.
Choose According to Surface and Application
Curved walls, columns, exterior façades and high-moisture areas may require different product specifications, substrates and installation systems. Product suitability should be confirmed for the intended application.
Prepare the Substrate Properly
A clean, stable and suitably prepared substrate is important for reliable adhesion and a consistent finish. Uneven surfaces, moisture or incompatible adhesives may affect the final result.
Plan Joints and Transitions in Advance
Linear patterns can make changes in direction, corners and panel joints more visible. Plan panel layout, cutting positions and transitions before installation to maintain visual continuity.

Technical Specifications Table

General Specifications

Specification	600 × 1200 mm/1200 × 2400 mm/600 × 2700mm/1200 × 2700mm/1200 × 3000mm/other
Raised Thickness	2.5–9 mm
Weight per Square Meter	3.5–9.5 kg
Water Absorption	7.50%
Artificial Weathering	2,000 h
TVOC	6.2 g/m²
Dimensional Tolerance	±1 mm
Negative Ion Concentration	2.7 × 10⁴ ions/cm³
Internal Exposure Index (Ir)	0.1

Composition & information on ingredients

Substance name	Conc. (%)	CAS.
Silicon dioxide	76.69	7631-86-9
Calcium oxide	11.14	1305-78-8
Acrylic polymer	4.9	/
Aluminium oxide	4.5	1344-28-1
Magnesium oxide	2.06	1309-48-4
Manganese monoxide	0.22	1344-43-0
Iron oxide	0.22	1332-37-2
Titanium dioxide	0.2	13463-67-7
Hydroxyethyl methyl cellulose	0.07	9032-42-2

Fire Performance Class A (A2-s1, d0)

No.	Test Item	Standard Requirement	Test Result	Conclusion	Test Standard
1	Total Heat Release (THR)	≤ 3.0 MJ/kg	0.7 MJ/kg	Pass	GB/T 14402-2007
2	Fire Growth Rate Index (FIGRA₀.₂MJ)	≤ 120 W/s	31 W/s	Pass	GB/T 20284-2006
3	Total Heat Release within 600 s (THR₆₀₀s)	≤ 7.5 MJ	1.0 MJ	Pass	GB/T 20284-2006
4	Lateral Flame Spread	Not reaching the edge of the long wing of the specimen	Not reaching the edge of the long wing of the specimen	Pass	GB/T 20284-2006
5	Smoke Growth Rate Index (SMOGRA)	≤ 30 m²/s²	0 m²/s²	Pass	GB/T 20284-2006
6	Total Smoke Production within 600 s (TSP₆₀₀s)	≤ 50 m²	38 m²	Pass	GB/T 20284-2006
7	Flaming Droplets/Particles	No flaming droplets/particles within 600 s	No flaming droplets/particles within 600 s	Pass	GB/T 20284-2006

Environmental & Material Safety

No.	Test Category	Test Item	Standard Requirement (Indoor)	Test Result	Conclusion	Test Standard
1	Hazardous Substance Limits	TVOC (g/m²)	≤ 10	6.2	Pass	GB 18586-2001 5.5
2	Hazardous Substance Limits	Soluble Lead (mg/m²)	≤ 20	Not Detected	Pass	GB 18586-2001 5.4
3	Hazardous Substance Limits	Soluble Cadmium (mg/m²)	≤ 20	Not Detected	Pass	GB 18586-2001 5.4
4	Radionuclide Limits	IRa	≤ 1.0	0.0⁺	Pass	GB 6566-2010
5	Radionuclide Limits	Ir	≤ 1.3	0.0⁺	Pass	GB 6566-2010

Need Help Choosing the Right Linear Texture?

Tell us about your project and application, and our team will recommend suitable flexible stone veneer solutions for your needs.

Project Applications

Linear flexible stone cladding brings a strong sense of direction and visual rhythm to architectural surfaces. Its varied linear textures work well on feature walls, columns, façades and selected curved surfaces, creating distinctive depth across residential, hospitality, retail and commercial spaces.

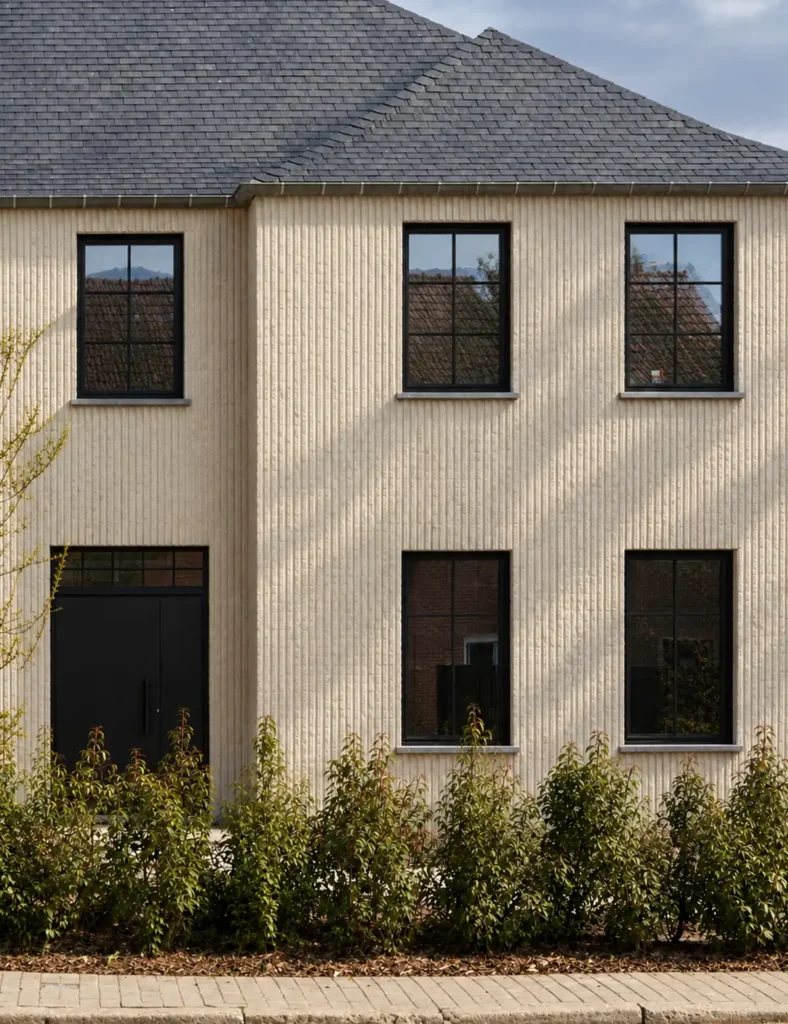

Light beige linear flexible stone cladding brings a clean vertical rhythm to this modern residential facade.

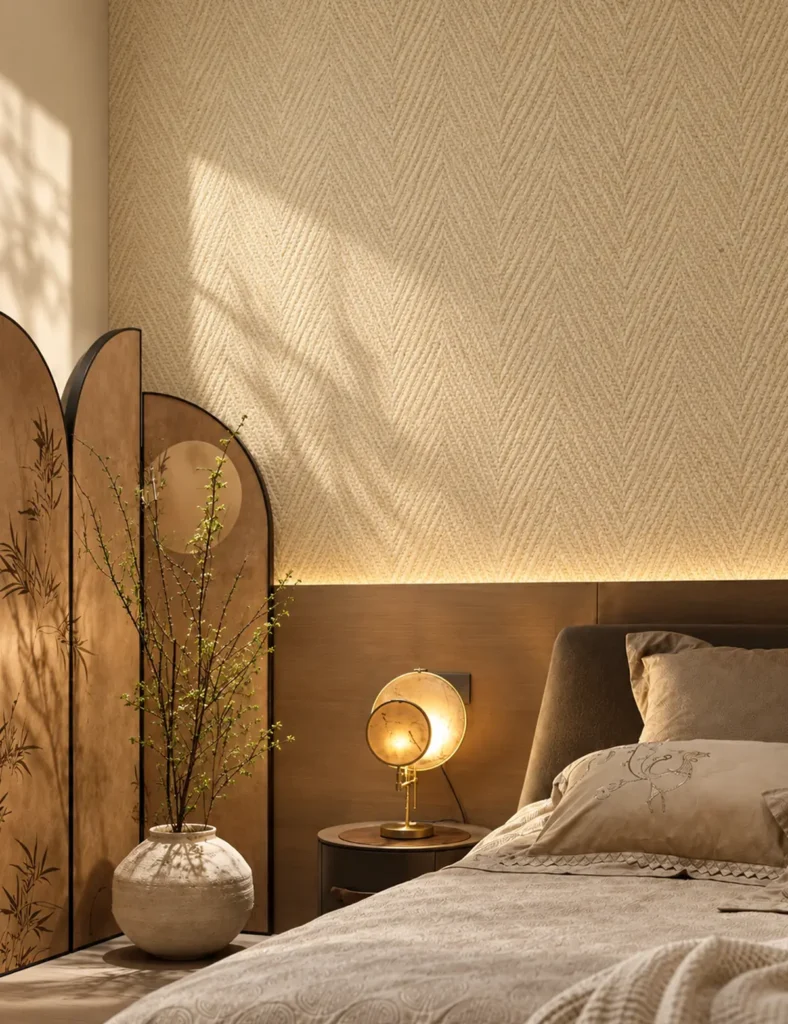

A warm woven stone texture gives this bedroom wall a soft, natural look with quiet visual depth.

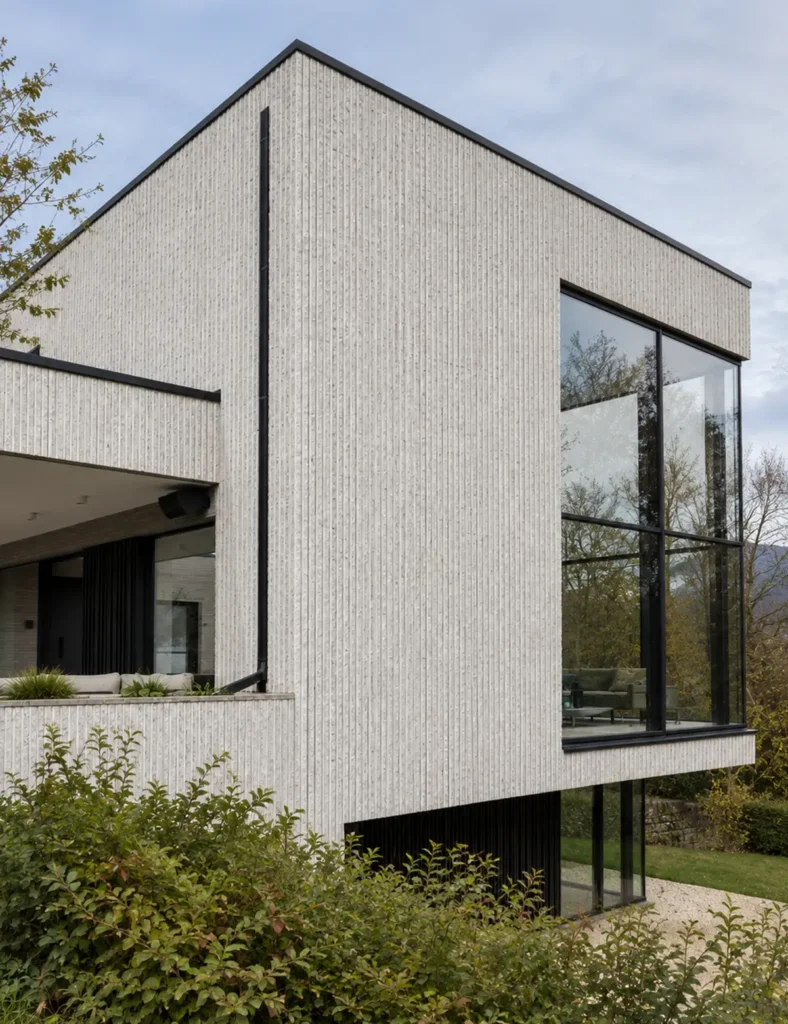

Oman Line Stone texture brings a crisp vertical rhythm and refined mineral finish to this modern residential facade.

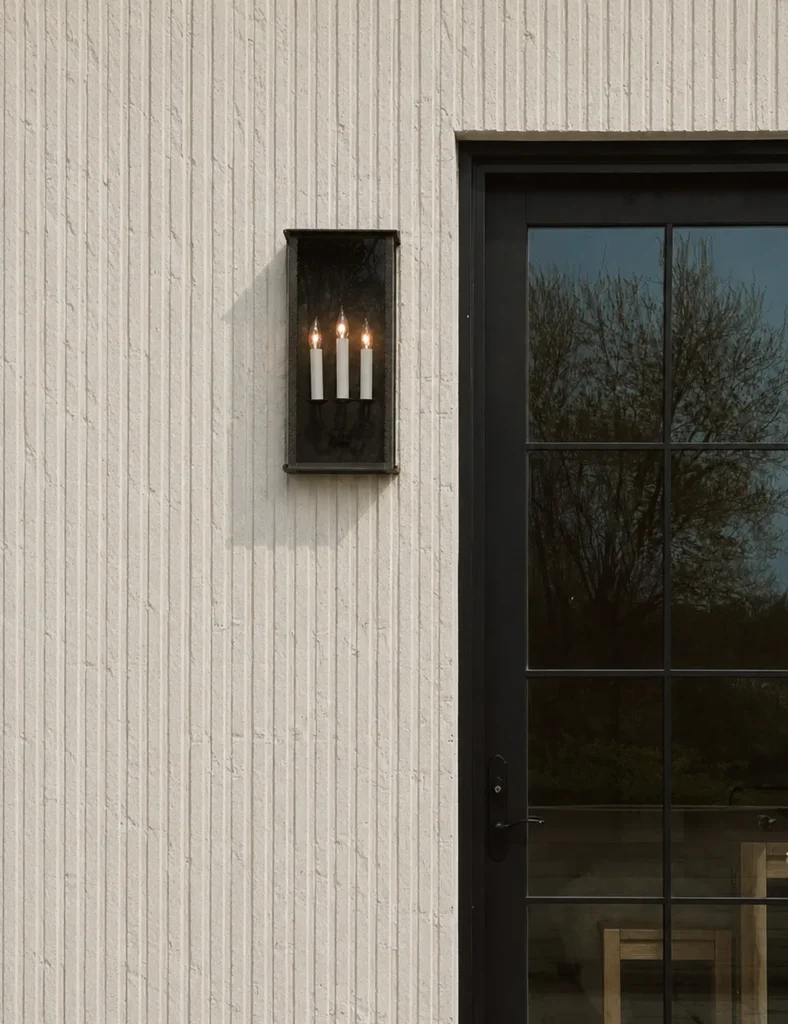

Light Qianmo Stone cladding creates a refined transition around the dark entrance, with subtle texture revealed through natural light and shadow.

Installation

Get practical guidance for installing linear textured panels, from surface preparation and panel handling to texture alignment, adhesive application, and clean finishing.

Linear Stone Cladding Installation Guide

Learn how to prepare surfaces, handle panels, align linear textures, and achieve clean joints for interior and exterior applications.

Technical Support for Projects

Get practical guidance on product selection, texture layout, adhesive compatibility, curved applications, and project-specific installation requirements from our technical support team.

Customer Feedback & Application Considerations

Hear from customers who have experienced our linear texture products in real projects, sharing their impressions of the material, finish, installation, and overall project experience.

“The linear texture gave our reception wall a much cleaner architectural look than a conventional textured finish. The panels were also easy to work with on site.”

“We mainly focused on keeping the lines aligned during installation. Once the layout was planned properly, the overall finish came together very well.”

“We used the panels on selected feature surfaces in the hotel. The texture adds depth without making the space feel visually heavy.”

“We wanted the shopfront to look more premium without making it feel too heavy. This linear finish worked really well for us.”

Bubbling, Hollow Spots & Surface Detachment

Potential Issue:
Insufficient adhesive coverage, trapped air, excessive substrate moisture, or installation on an unstable surface can lead to bubbling, hollow areas, edge lifting, and panel separation.
Key Precaution:
Avoid spot bonding. Check the substrate and adhesive compatibility on a small test area before large-scale installation, especially for exterior or moisture-prone applications.

Cracking, Edge Lifting & Joint Failure

Potential Issue:
Substrate movement, uneven surfaces, improper bending, or inadequate treatment of joints and edges may cause visible stress, cracking, curling, or separation around corners and panel joints.
Key Precaution:
For curved walls and architectural details, gradually form the flexible stone veneer instead of applying excessive localized pressure. Plan panel layout and joint positions before installation.

Staining, Texture Inconsistency & Uneven Finish

Potential Issue:
Incorrect adhesive, excessive adhesive thickness, uneven pressure, or improper panel layout can cause visible adhesive marks, surface irregularities, or inconsistent texture flow.
Key Precaution:
Always evaluate physical samples before installation. For large projects, confirm texture, color, batch consistency, panel orientation, and overall layout before production and installation.
